Temperature range：5～35℃
Cooling capacity：600~7500W
Circulating flowrate：0-45L/min
Temperature stability：±0.1℃
Strength guarantee: 20 years of manufacturing experience,
24-hour after-sales service
Online Consultation

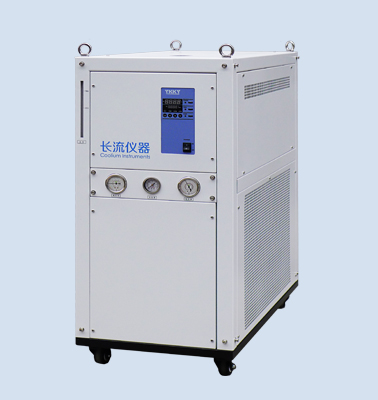

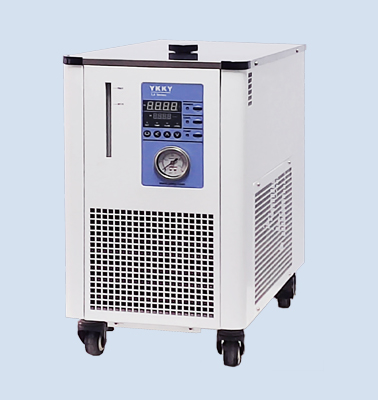

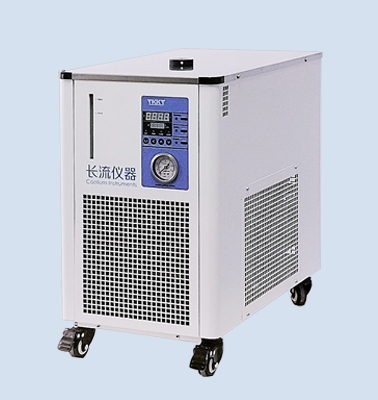

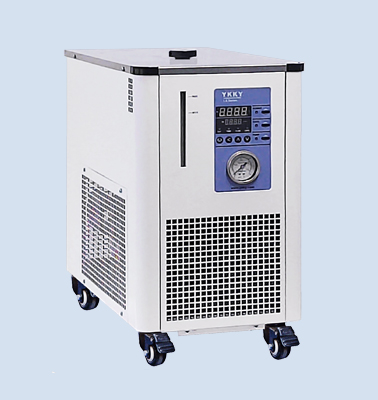

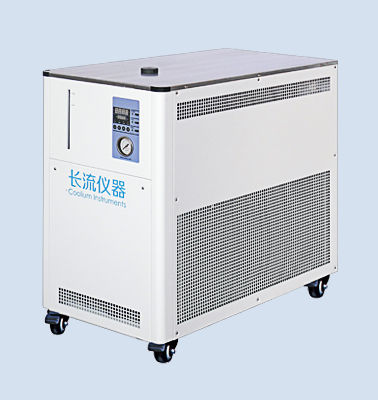

LX series cooling water circulating machine, designed and manufactured to provide industry-leading technical indicators and reliability, is a high precision and high stability cooling equipment.
LX series chiller, providing different cooling output models, used in various laboratory and production fields, to meet different cooling temperature requirements.
LX series adopts non-start-stop refrigeration technology, combined with PID temperature control, fast refrigeration, stable temperature, for some of the requirements of precision constant temperature cooling equipment, this machine is very suitable.
This product successfully won the bid of Beijing Electron-positron Collider Major Transformation Project (BEPCII) circulating chiller project.
This series of products, batch application in Shanghai synchrotron radiation light source (SSRF).
| Model | Temperature range （℃） |
Temperature stability （℃） |
Cooling capacity （W） |
Filling volume （L） |
Circulating pressure （bar） |
Circulating flowrate （L/min） |
Size of connection （Rc） |
Net weight （kg） |
Dimension W×D×H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| LX-600 | 5～35 | ±0.1 | 600 | 5 | 0～0.8 | 0～15 | 1/2〞 | 35 | 290×550×540 |
| LX-600A | 5～35 | ±0.1 | 600 | 5 | 0～1.0 | 0～10 | 1/2〞 | 35 | 290×550×540 |
| LX-600P | 5～35 | ±0.1 | 600 | 5 | 0～4.0 | 0～6 | 1/2〞 | 35 | 290×550×540 |
| LX-1000 | 5～35 | ±0.1 | 1000 | 8 | 0～3.7 | 0～28 | 1/2〞 | 56 | 345×620×600 |
| LX-2000 | 5～35 | ±0.1 | 2000 | 14 | 0～3.7 | 0～28 | 1/2〞 | 60 | 385×655×700 |
| LX-3000 | 5～35 | ±0.1 | 3000 | 40 | 0～3.7 | 0~45 | 1/2'' | 90 | 425×750×700 |
| LX-5000 | 5～35 | ±0.1 | 5000 | 40 | 0～3.7 | 0～45 | 1/2〞 | 109 | 465×855×805 |
| LX-5000A | 5～35 | ±0.1 | 5000 | 80 | 0～3.7 | 0～45 | 1/2〞 | 162 | 500×1000×1090 |
| LX-6000 | 5～35 | ±0.1 | 6000 | 80 | 0～3.7 | 0～45 | 1/2〞 | 135 | 500×1000×1090 |
| LX-7500 | 5～35 | ±0.1 | 7500 | 80 | 0～3.7 | 0～45 | 1/2〞 | 188 | 500×1000×1090 |
Offers temperature, pressure, flow rate, conductivity and other options.
Standard thread connection, can be converted to domestic and foreign British or metric joints.
ndependent design, independent production, completely independent intellectual property rights.
Multi-purpose one machine can cool multiple user equipment.
* Temperature, pressure, water level can be displayed, optional flow display
* Professionally designed dynamic temperature control system, high temperature control precision, small temperature fluctuation
* Simple and convenient man-machine interface, automatic memory of control parameters
* All kinds of refrigeration power and circulating pump pressure can meet the cooling and constant temperature of all kinds of instruments
* The key components of the refrigeration system are imported international brand components, which work stably and reliably
* A variety of circulating pumps, ultra quiet, high pressure or large flow
* Adjustable circulation pressure, stainless steel pressure indicator
* Standard stainless steel tank, can be equipped with a variety of specifications of connectors and hoses, external closed circuit circulation.
* Optional 0.01℃ temperature measurement and control, optional power failure recovery function, optional flow alarm
* Optional RS485 communication, easy to connect to the host computer
* Precise temperature control, the application of supporting calorimeter, refractometer, density detector;
* Use with viscosity measurement, very convenient;
* Provide a constant temperature source for quality control, for food, beverage and electronic research applications;
* In the field of biotechnology, it is applied to the constant temperature cooling of electrophoresis tank;
* Precision constant temperature for small lasers;
* Applied to medical rehabilitation
