Enhanced Chiller

Temperature range:5~80℃

Cooling capacity:300~5000W

Circulating flowrate:0~45L/min

Temperature stability:±0.01

Strength guarantee: 20 years of manufacturing experience,

24-hour after-sales service

Online Consultation

Product Introduction

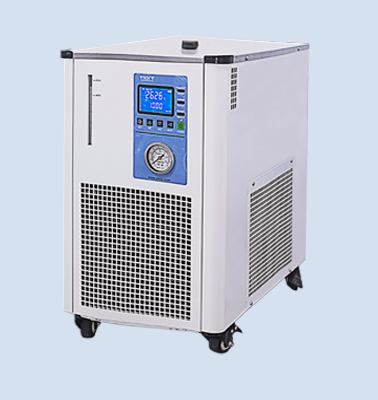

LX plus enhanced chiller, based on the precision chiller, expands the upper limit of temperature control range to 80 ℃ and improves the temperature control accuracy to ± 0.01 ℃. It is a high-precision and stable cooling equipment.

LX plus series adopts non-start-stop refrigeration technology, combined with PID fuzzy control, with fast refrigeration and stable temperature. This machine is very suitable for some equipment requiring precise constant temperature cooling.

LX plus series provides a variety of models with different cooling capacity output, which are used in various laboratories and production fields to meet different cooling and constant temperature requirements.

Technical Parameters

  Model    Temperature range
(℃)
Temperature stability
(℃)
Cooling capacity
(W)
Filling volume
(L)
Circulating pressure
(bar)
Circulating flowrate
(L/min)
Size of connection
(Rc)
Net weight
(kg)
Dimension W×D×H
(mm)
LX-600+ 5~80 ±0.01 600 5 0~0.8 0~15 1/2〞 40 290×550×540
LX-1000+ 5~80 ±0.01 1000 8 0~3.7 0~28 1/2〞 55 345×620×600
LX-2000+ 5~80 ±0.01 2000 14 0~3.7 0~45 1/2〞 62 385×655×685
LX-3000+ 5~80 ±0.01 3000 40 0~3.7 0~45 1/2〞 92 425×750×755
LX-5000+ 5~80 ±0.01 5000 40 0~3.7 0~45 1/2〞 110 465×855×805

Product Advantage

Multi-parameter measurement and control

Multi-parameter measurement and control

Offers temperature, pressure, flow rate, conductivity and other options.

A variety of interfaces, a variety of joints

A variety of interfaces, a variety of joints

Standard thread connection, can be converted to domestic and foreign British or metric joints.

19-inch cabinet (Rack type)

19-inch cabinet (Rack type)

Independent design, independent production, completely independent intellectual property rights.

Stainless steel water separator, multipath cooling

Stainless steel water separator, multipath cooling

Multi-purpose one machine can cool multiple user equipment.

Product Features

* Temperature, pressure, water level can be displayed.

* Wide temperature range, high temperature control accuracy, small temperature fluctuation.

* LCD display, easy to operate, control parameters automatic memory.

* A variety of refrigeration power can meet the cooling and constant temperature of all kinds of instruments.

* A variety of circulating pumps, ultra quiet, high pressure or large flow.

* Standard stainless steel tank, can be equipped with a variety of specifications of connectors and hoses, external closed circuit circulation.

* Optional RS485 communication, optional power outage automatic recovery function.
