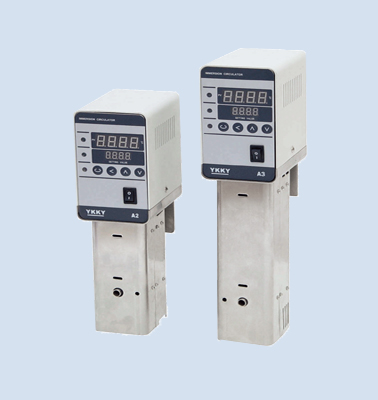

Immersion Circulator

Beautiful appearance, compact size input heating constant temperature circulator, with heating, constant temperature, circulation function, can be used with any sink, bath volume up to 30 liters, used for bath heating control, if with refrigeration bath, the temperature can be controlled below room temperature. Widely used in petroleum, chemical, pharmaceutical, biochemical, light industry, scientific research and other fields of water bath temperature control.

Technical Parameters

Model	Temperature range (°C)	Temperature stability (°C)	Circulating flowraet (L/min)	Circulating pressure (bar)	Heat capacity (W)	Immersion depth (mm)	Power requirement (V Hz kW)	Net weight (kg)	Dimension W×D×H (mm)
A2	-50～100	±0.1	10	0.18	1000	70～150	220/50/0.42	2.8	80×125×300
A3	-50～100	±0.1	12	0.18	1500	70～190	220/50/0.52	3.1	80×125×340

Product Advantage

Product Features

* The measured temperature and set temperature are digital double window and double color display;

* Microcomputer PID fuzzy control, with intelligent learning function, small temperature fluctuation;

* The parts below the liquid level are all stainless steel materials, suitable for various working conditions;

* Precise temperature control, display resolution can choose 0.1℃;

* Universal reflux mixing, bath temperature uniform;

* Flexible fixed mode, special requirements can be customized;

* Can be matched with a variety of bath;

Applications

* Precision temperature control, used in kitchen cooking equipment, heating soup, etc.

* Application with a variety of circulation bath, auxiliary bath temperature control heating use;
