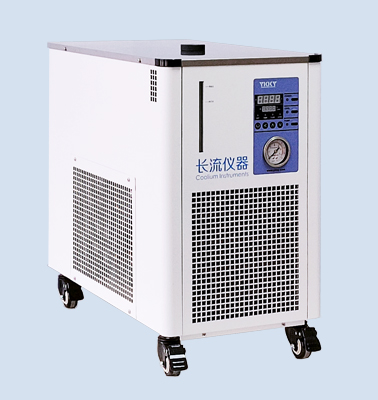

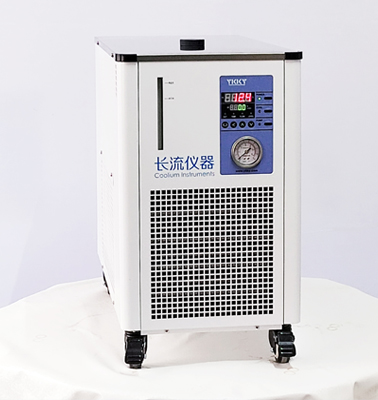

Precision Chiller LX-1000

Temperature stability:5~35℃

Cooling capacity:1000W@20℃

Circulating flowrate:0~28L/min

Temperature stability:±0.1

Strength guarantee: 20 years of manufacturing experience,

24-hour after-sales service

Online Consultation

Technical Parameters

* Temperature range:5~35℃

* Temperature stability:±0.1℃

* Cooling capacity:1000W@20℃

* Filling volume:8L

* Circulating pressure:0~3.7bar

* Circulating flowrate:0~28L/min

* Power requirement:220V/50HZ/16A

* Size of connection:Rc1/2〞

* Overall dimension:W345×D620×H600mm

* Net weight:56kg


Product Advantage

Multi-parameter measurement and control

Multi-parameter measurement and control

Offers temperature, pressure, flow rate, conductivity and other options.

A variety of interfaces, a variety of joints

A variety of interfaces, a variety of joints

Standard thread connection, can be converted to domestic and foreign British or metric joints.

19-inch cabinet (Rack type)

19-inch cabinet (Rack type)

Independent design, independent production, completely independent intellectual property rights.

Stainless steel water separator, multipath cooling

Stainless steel water separator, multipath cooling

Multi-purpose one machine can cool multiple user equipment.

Product Features

* Temperature, pressure, water level can be displayed, optional flow display

* Professionally designed dynamic temperature control system, high temperature control precision, small temperature fluctuation

* Simple and convenient man-machine interface, automatic memory of control parameters

* All kinds of refrigeration power and circulating pump pressure can meet the cooling and constant temperature of all kinds of instruments

* The key components of the refrigeration system are imported international brand components, which work stably and reliably

* A variety of circulating pumps, ultra quiet, high pressure or large flow

* Adjustable circulation pressure, stainless steel pressure indicator

* Standard stainless steel tank, can be equipped with a variety of specifications of connectors and hoses, external closed circuit circulation.

* Optional 0.01℃ temperature measurement and control, optional power failure recovery function, optional flow alarm

* Optional RS485 communication, easy to connect to the host computer

Applications

* Precise temperature control, the application of supporting calorimeter, refractometer, density detector;

* Use with viscosity measurement, very convenient;

* Provide a constant temperature source for quality control, for food, beverage and electronic research applications;

* In the field of biotechnology, it is applied to the constant temperature cooling of electrophoresis tank;

* Precision constant temperature for small lasers;

* Applied to medical rehabilitation
