Split-System Chiller

Temperature range:5~35℃

Cooling capacity:3000W~20K

Circulating flowrate:0~45L/min

Temperature stability:±0.1~±0.2℃

Strength guarantee: 20 years of manufacturing experience,

24-hour after-sales service

Online Consultation

Product Introduction

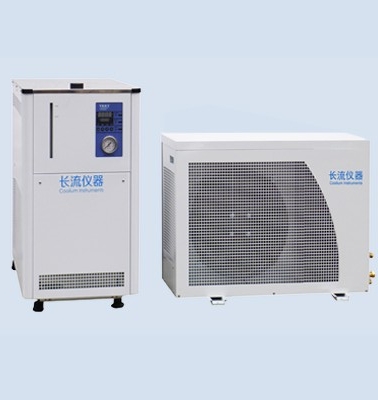

Split chiller is composed of indoor unit and outdoor unit. Generally, the heat dissipation part is placed outdoors.

The outdoor unit will discharge all the heat generated by the refrigeration system outdoors and isolate the noise outside. The indoor unit is mainly a temperature control and circulation system. There is basically no heat generation in the room. At the same time, the noise is very low, which also reduces the occupation of indoor space.

The split chiller is an environment-friendly chiller, which is very suitable for the laboratory with high requirements for indoor temperature and noise, and can significantly improve the indoor working environment.

The split chiller is mainly applied to atomic absorption, laser, vacuum coating machine, ion etching machine, ultra-low temperature experimental instrument, oxygen and nitrogen analyzer, X-ray diffractometer, hydraulic source, oil source and other heating equipment. Due to the small laboratory space, the chiller generates a lot of heat and noise while working. In order to create a comfortable and quiet working environment for scientific and technological workers, the split chiller is a good choice.

Technical Parameters

  Model    Temperature range
Temperature stability
Cooling capacity
Filling volume
Circulating pressure
Circulating flowrate
Size of connection
Net weight
LX-3000F 5~35 ±0.1 3000 40 1.4~3.7 0~45 DN15 60+52 425×750×700
LX-5000F 5~35 ±0.1 5000 40 1.4~3.7 0~45 DN15 60+55 425×750×700
LX-7500F 5~35 ±0.1 7500 40 1.4~3.7 0~45 DN15 60+80 425×750×700
LX-10KF 8~25 ±0.2 10kW 80 1.4~3.7 17~117 DN25 140+115 550×1000×1100
LX-20KF 8~25 ±0.2 20kW 80 1.4~3.7 17~117 DN25 140+165 550×1000×1100

Product Advantage

Multi-parameter measurement and control

Multi-parameter measurement and control

Offers temperature, pressure, flow rate, conductivity and other options.

A variety of interfaces, a variety of joints

A variety of interfaces, a variety of joints

Standard thread connection, can be converted to domestic and foreign British or metric joints.

19-inch cabinet (Rack type)

19-inch cabinet (Rack type)

Independent design, independent production, completely independent intellectual property rights.

Stainless steel water separator, multipath cooling

Stainless steel water separator, multipath cooling

Multi-purpose one machine can cool multiple user equipment.

Product Features

* Temperature, pressure, water level can be displayed, optional flow display

* Professionally designed dynamic temperature control system, high temperature control precision, small temperature fluctuation

* Simple and convenient man-machine interface, automatic memory of control parameters

* All kinds of refrigeration power and circulating pump pressure can meet the cooling and constant temperature of all kinds of instruments

* The key components of the refrigeration system are imported international brand components, which work stably and reliably

* A variety of circulating pumps, ultra quiet, high pressure or large flow

* Adjustable circulation pressure, stainless steel pressure indicator

* Standard stainless steel tank, can be equipped with a variety of specifications of connectors and hoses, external closed circuit circulation.

* Optional 0.01℃ temperature measurement and control, optional power failure recovery function, optional flow alarm

* Optional RS485 communication, easy to connect to the host computer


* Precise temperature control, the application of supporting calorimeter, refractometer, density detector;

* Use with viscosity measurement, very convenient;

* Provide a constant temperature source for quality control, for food, beverage and electronic research applications;

* In the field of biotechnology, it is applied to the constant temperature cooling of electrophoresis tank;

* Precision constant temperature for small lasers;

* Applied to medical rehabilitation.
