Minimum temperature:-110~-30℃
Internal capacity:2~25L
Internal dimension:Φ120×200mm to Φ280×410mm
With 304 stainless steel trap bath
Strength guarantee: 20 years of manufacturing experience,
24-hour after-sales service

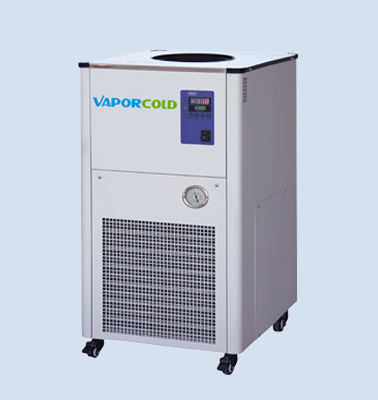

Online ConsultationLow temperature cold trap, used for collecting water vapor and harmful gas discharged from vacuum drying oven or vacuum concentration device, improve the working efficiency of vacuum system and prolong the service life of vacuum pump.

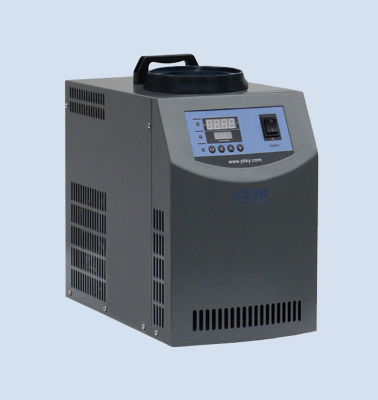

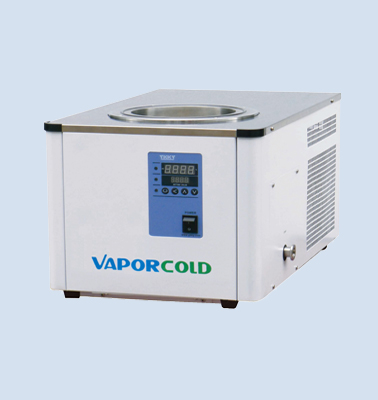

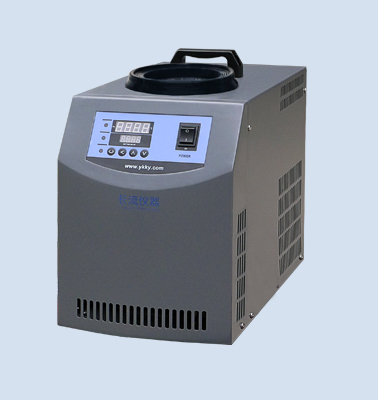

Table type design, suitable for use on the work surface, can also be placed in the fume hood.
Model | Minimum temperature (°C) |
Internal Capacity (L) |
Internal dimension (mm) |
Temperature Control |
Cooling mode |
Power output |
Power Supply (V/Hz/kW) |
Net weight (kg ) |
Dimensions W×D×H (mm) |
---|---|---|---|---|---|---|---|---|---|
CT2-50 | -50 | 2 | Φ120×200 | NA | Air-cooled | NA | 220/50/0.4 | 23 | 250×430×360 |
CT2-80 | -80 | 2 | Φ120×200 | NA | Air-cooled | NA | 220/50/0.9 | 32 | 300×500×430 |
CT4-50 | -50 | 4 | Φ160×200 | NA | Air-cooled | NA | 220/50/0.6 | 35 | 360×600×300 |
CT4-80 | -80 | 4 | Φ160×200 | NA | Air-cooled | Available | 220/50/1.2 | 68 | 450×630×380 |
CT4-110 | -110 | 4 | Φ160×200 | NA | Air-cooled | Available | 220/50/1.4 | 75 | 500×650×430 |
CT9-50 | -50 | 9 | Ф220×250 | Available | Air-cooled | Available | 220/50/1.5 | 65 | 440×520×880 |
CT25-50 | -50 | 25 | Φ280×410 | Available | Air-cooled | Available | 220/50/1.8 | 80 | 440×520×880 |
Cold trap temperature -50、-80、-110、-135℃; Cold trap capacity 2、4、6、9、25 liters.
Vacuum cold trap, Cryogenic trap, Temperature stat cold trap.
Stainless steel, pure titanium, glass, Teflon coating.
Capture, condensation, separation, adsorption、purification,different solutions available.
* Stainless steel cold trap, the inner wall is smooth and clean, teflon coating is optional.
* Low limit temperature, improve the recovery of low boiling point solvent and harmful gas collection efficiency.
* Can be cooled directly in the inner wall of the cold trap, or optional glass condensing collection bottle.
* A variety of materials are available for cold trap lid, suitable for water, acid, organic solvent gas.
* Equipped with condensate discharge valve for easy collection or discharge.
* Can be used as cryogenic tank, pre-freezing tank, cryogenic container.
* Suitable for rotary evaporator, centrifugal concentrator matching use.
* Cold trap size, Port size can be customized according to customer needs;
* Can be customized vacuum sealed cold trap;
* Can be equipped with a variety of specifications of condensing bottles;
* Cold trap capacity 2L, 4L, 6L, 9L, 25L ;
* Minimum temperature -82℃, -100℃, -120℃, -135℃.
