Minimum temperature：-135~-100℃
Internal capacity：6~25L
Internal dimension：Ф200×220 or Φ220×250mm
Special control circuit, optional RS485
Strength guarantee: 20 years of manufacturing experience,
24-hour after-sales service
Online Consultation

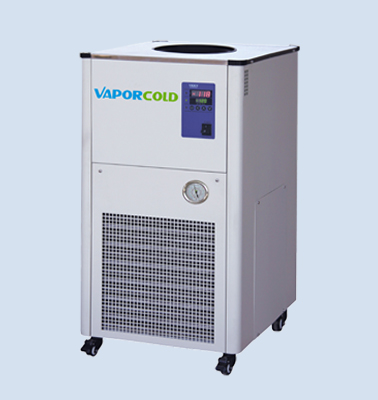

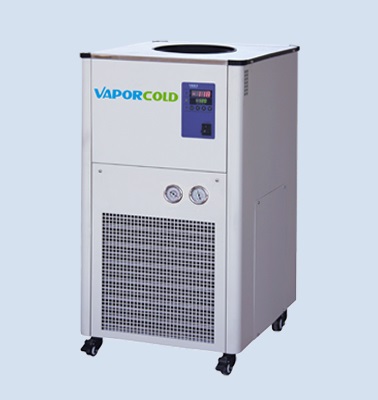

CT series ultra-low temperature cold trap, using automatic cascade refrigeration, is a small ultra-low temperature equipment. Suitable for gas condensation and capture, low temperature liquid bath, oil and gas recovery, material testing, medicine freeze drying and other applications.
It can be used as cryogenic tank, pre-freezing tank and cryogenic container.
It can provide ultra low temperature conditions for all kinds of small systems.
| Model | Minimum temperature (°C) |
Internal Capacity (L) |
Internal dimension (mm) |
Temperature Control |
Cooling mode | Power output |
Power Supply (V/Hz/kW) |
Net weight (kg) |
Dimension W×D×H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| CT6-100 | -100 | 6 | Ф200×220 | NA | Air-cooled | NA | 220/50/1.3 | 92 | 440×520×880 |
| CT6-120 | -120 | 6 | Ф200×220 | NA | Air-cooled | NA | 220/50/1.4 | 102 | 440×520×880 |
| CT6-135 | -135 | 6 | Ф200×220 | NA | Air-cooled | NA | 220/50/1.9 | 116 | 500×550×1180 |
| CT9-100 | -100 | 9 | Ф220×250 | optional | Air-cooled | Available | 220/50/1.5 | 95 | 440×520×880 |
| CT9-120 | -120 | 9 | Ф220×250 | optional | Air-cooled | Available | 220/50/1.6 | 108 | 440×520×880 |
| CT9-135 | -135 | 9 | Ф220×250 | optional | Air-cooled | Available | 380/50/2.0 | 121 | 500×550×1180 |
Cold trap temperature -50、-80、-110、-135℃; Cold trap capacity 2、4、6、9、25 liters.
Vacuum cold trap, Cryogenic trap, Temperature stat cold trap.
Stainless steel, pure titanium, glass, Teflon coating.
Capture, condensation, separation, adsorption、purification，different solutions available.
* Cold trap size and Port size can be customized as required.
* Can be customized vacuum sealed cold trap.
* Can be equipped with a variety of specifications of condensing bottles.
* Cold trap volume 4L, 6L, 9L, 25L.
* Minimum temperature -82, -100, -120, -135℃.
