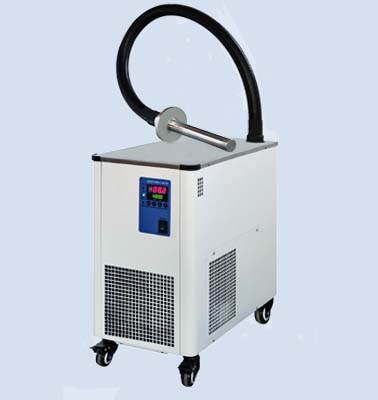

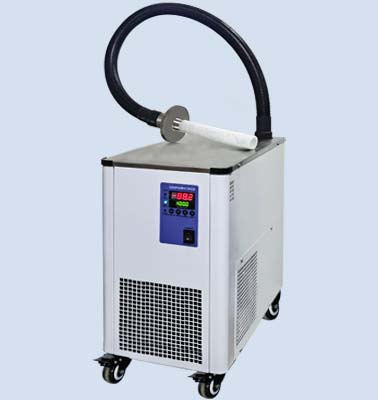

Cryo Chiller CC-80

Minimum temperature:-85℃

Cold head size:Ф25×300mm

Hose length:1400mm

Special control circuit, optional RS485

Strength guarantee: 20 years of manufacturing experience,

24-hour after-sales service

Online Consultation

Technical Parameters

* Minimum temperature:-85°C

* Cold head size:ф25×300mm

* Hose length:1400mm

* Net weight:57kg

* Power requirements:220V 50Hz 1.0kW

* Overall dimension:300W×550D×580Hmm

Product Advantage

Product Features

* Temperature -90  to -145 ℃

* Free standing, compact size

* Rated for continuous cooling

* Shipped ready to operate.

* Uses a single compressor for reliable performance.

* Are quickly and easily installed

Applications

* Helium mass spectrometer leak detectors·

* Cold trap for mechanical pumps

* Cold baffles for small vacuum chamber

* Replace liquid nitrogen in cold traps

* Provide high-speed pumping of water vapor

* Cools compressed dry gas stream

* Vacuum System Cold Trap Cooling

* Parylene Coating Traps
