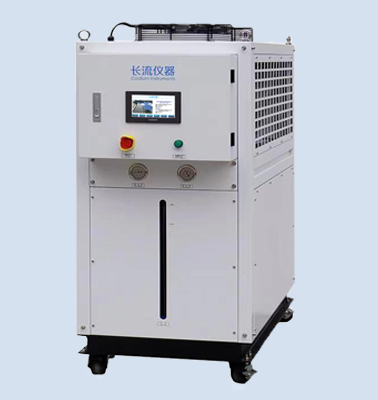

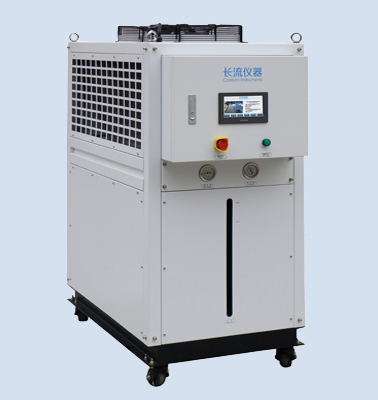

Industrial Chiller LX-10K

Temperature range:8~25℃

Cooling capacity:10kW@20℃

Circulating flowrate:17~117L/min

Temperature stability:±0.2℃

Strength guarantee: 20 years of manufacturing experience,

24-hour after-sales service

Online Consultation

Technical Parameters

* Temperature range:8~25℃

* Temperature stability:±0.2℃

* Cooling capacity:10kW@20℃

* Filling volume:40L

* Circulating pressure:1.4~3.8 bar

* Circulating flowrate:17~117L/min

* Powe requirement:380V/50HZ/40A

* Size of connection:DN25

* Overall dimension:W650×D1180×H1360mm

* Net weight:276kg

Product Advantage

Multi-parameter measurement and control

Multi-parameter measurement and control

Provide color touch screen for temperature, pressure, flow and conductivity measurement.

Large capacity,high precision

Large capacity,high precision

Cooling capacity of 10KW ~820KW, and the temperature control accuracy is up to ±0.15℃.

Main stainless steel material, clean pipe

Main stainless steel material, clean pipe

Controllable material to meet the water quality requirements of sophisticated equipment.

A variety of protection, one use one standby

A variety of protection, one use one standby

Scientific and effective protection measures to ensure the safety of the cooling equipment.

Product Features

* Large cooling capacity, complete series, from 10KW to 100KW, can be customized;

* Double window and double color digital display precision temperature controller, temperature control accuracy up to ±0.2℃;

* Optional deion device to meet special water quality requirements;

* High voltage, low voltage, overload, water level, phase sequence and other protection, to ensure the safe operation of the machine;

* The chiller is equipped with an independent water circulation system. The water in the chiller is recycled, which can save a lot of water.

* The chiller has a completely independent refrigeration system, which will never be affected by temperature and environment;

Applications

* Applied to industrial production process -- plastic industry: accurate control of all kinds of plastic processing mold temperature, shorten the beer molding cycle, ensure the stability of product quality;

* Applied to industrial production process -- electronic industry: stabilize the molecular structure of electronic components in the production line, improve the qualified rate of electronic components;

* Applied in the ultrasonic cleaning industry, effectively prevent expensive cleaning agent volatilization and volatilization to the injury;

* Applied to industrial production process - machinery industry: control the oil pressure system pressure oil temperature, stable oil temperature and oil pressure, prolong the use of oil quality, improve mechanical lubrication;

* Applied to industrial production process -- electroplating industry: control electroplating temperature, increase the density and smoothness of plating parts, shorten electroplating cycle, improve production efficiency, improve product quality;
