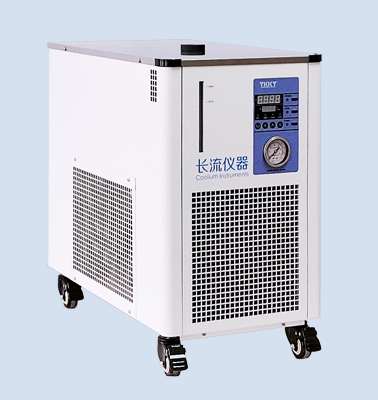

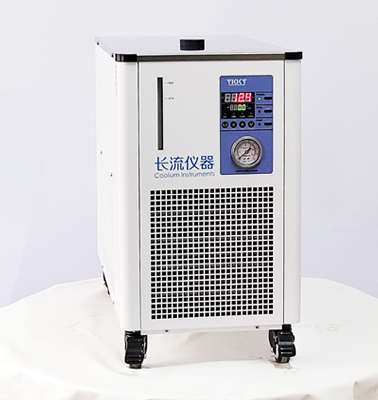

High Temp Chiller LX-1000-500-D5H55

Temperature range:5~55℃

Cooling capacity:500W@20℃

Circulating flowrate:25L/min

Temperature stability:±0.1


Strength guarantee: 20 years of manufacturing experience,

24-hour after-sales service

Online Consultation

Technical Parameters

* Temperature range:5~55℃

* Temperature stability:±0.1℃

* Cooling capacity:500W@

* Filling volume:8L

* Circulating pressure:4.5 bar

* Circulating flowrate:25L/min

* Size of connection:Rc1/2〞

* Overall dimension:W345×D620×H600mm

* Net weight:56kg

Product Advantage

Product Features

* Temperature, pressure, water level can be displayed;

* Professionally designed dynamic temperature control system, high temperature control accuracy, small temperature fluctuation;

* Simple and convenient man-machine interface, automatic memory of control parameters;

* All kinds of refrigeration power and circulating pump pressure can meet the cooling and constant temperature of all kinds of instruments;

* The key components of the refrigeration system are imported international brand components, which work stably and reliably;

* A variety of circulating pump can be selected, optional ultra quiet, high pressure or large flow;

* Adjustable circulation pressure, stainless steel pressure indicator;

* Standard stainless steel tank, can be equipped with a variety of specifications of connectors and hoses, external closed circuit circulation.

* Optional to install RS485 communication, easy to connect to the host computer;

* Optional power failure recovery function, optional flow alarm;


Applications

* Precise temperature control, the application of supporting calorimeter, refractometer, density detector;

* Use with viscosity measurement, very convenient;

Provide a constant temperature source for quality control, for food, beverage and electronic research applications;

* In the field of biotechnology, it is applied to the constant temperature cooling of electrophoresis tank;

* Precision constant temperature for small lasers;

* Applied to medical rehabilitation.
