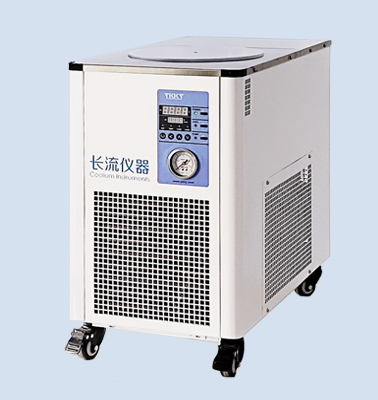

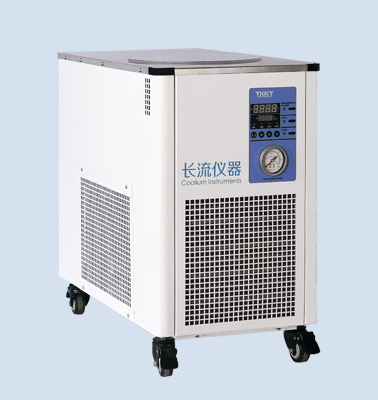

Circulator Bath HX-012

Temperature range:RT+5~99

Heating power:800W@20℃

Circulating flowrate:5~10L/min

Temperature stability:±0.02

Strength guarantee: 20 years of manufacturing experience,

24-hour after-sales service

Online Consultation

Technical Parameters

* Temperature range:RT+5~95℃

* Temperature stability:±0.02℃

* Heat capacity:800W

* Filling volume:12L

* Circulating pressure:0.25 bar

* Circulating flowrate:5~10L/min

Power requirement:220V/50HZ/10A

* Opening size:W150×D300mm

* Bath depth:150mm

* Overall dimension:W365×D340×H340mm

* Net weight:20kg

Product Advantage

Product Features

* Vertical or horizontal design, can adapt to a variety of use environment.

* Wide operating port, convenient for low temperature experiment in the tank.

* With external circulation interface, can be equipped with a variety of joints.

* Precise temperature control, display resolution can choose 0.1℃ or 0.01℃.

* Various temperature ranges, -10, -20, -40, -60, -80℃ circuit or short circuit alarm.

* Multiple safety design, with over temperature, water level, sensor open or short circuit alarm.

* Optional automatic water refill function to ensure uninterrupted use.

* Optional RS485 communication for convenient connection.


Applications

* Precise temperature control, the application of supporting electrophoresis apparatus, viscometer, molecular pump, microwave therapeutic machine, small rotary evaporator, etc.

* Use with viscosity measurement, very convenient;

* Provide a constant temperature source for quality control, used in food, research aid and electronic research;

* In the field of biotechnology, it is applied to the constant temperature cooling of electrophoresis tank;

* Precision constant temperature for small rotary evaporators;

* Applied to medical and psychological rehabilitation.
