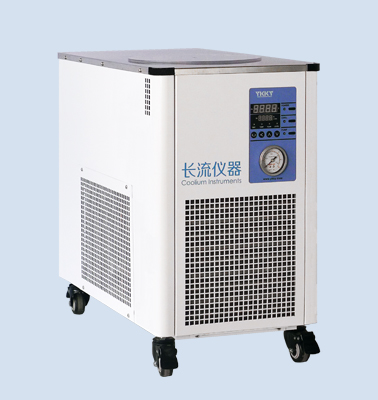

Ultra Low-Temp Circulator DX-8020

Temperature range:-80~400℃

Cooling capacity:500W@-80℃

Circulating flowrate:15L/min

Temperature stability:±0.1

Strength guarantee: 20 years of manufacturing experience,

24-hour after-sales service

Online Consultation

Technical Parameters

* Temperature range:-80~40℃

* Temperature stability:±0.1℃

* Cooling capacity:500W@-80℃

* Filling volume:20L

* Circulating pressure:0.8bar

* Circulating flowrate:15L/min

* Size of connection:Rc1/2〞

* Bath Size :Φ300×D300mm

* Overall dimension:W600×D1120×H1150 mm

* Net weight:162kg

Product Advantage

Product Features

* Microcomputer control, PID technology, high temperature control precision, easy to operate, simple to use.

* The core parts of the refrigeration system are all imported international brand parts to ensure the stable operation of the cooling system.

* The use of fluorine-free environmental protection refrigerant, in line with international environmental standards.

* Adopt overlapping and self-overlapping refrigeration technology, large cooling capacity and high refrigeration efficiency.

* Low temperature special circulation pump, low temperature working conditions without leakage, no blocking phenomenon.

* Closed circulation system, effectively prevent secondary refrigerant volatilization and pollution, saving resources.

* The liquid storage tank and circulation pipeline are all made of stainless steel, with good corrosion resistance.

* Host cooling mode air cooling, water cooling optional, adapt to different user conditions.

* The machine has high and low pressure, oil pressure, leakage, overload, overheating and other safety protection functions.

* The whole machine is stable and reliable, to meet the continuous production of process cold source demand.

* Optional flow display and alarm, optional RS485 communication, easy to connect to the host computer.

Applications

* Precise temperature control, the application of supporting calorimeter, refractometer, density detector;

* Use with viscosity measurement, very convenient;

* Provide a constant temperature source for quality control, for food, beverage and electronic research applications;

* In the field of biotechnology, it is applied to the constant temperature cooling of electrophoresis tank;

* Precision constant temperature for small rotary evaporators;

* Applied to medical and psychological rehabilitation.
