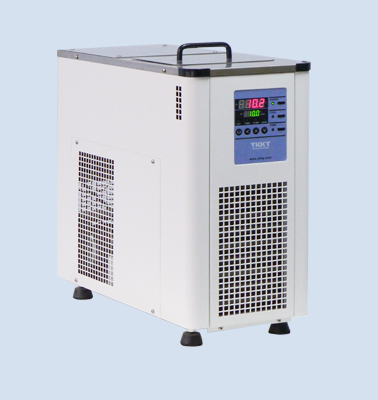

Low-Temp Circulator DX-204

Temperature range:-20~30℃

Cooling capacity:300W@20℃

Circulating flowrate:15L/min

Temperature stability:±0.1

Strength guarantee: 20 years of manufacturing experience,

24-hour after-sales service

Online Consultation

Technical Parameters

* Temperature range:-20~30℃

* Temperature stability:±0.1℃

* Cooling capacity:300W@20℃

* Filling volume:4L

* Circulating pressure:0.8 bar

* Circulating flowrate:15L/min

Powerrequirement:220V/50HZ/10A

* Size of connection:Rc1/2〞

* Overall dimension:W230×D500×H500mm

* Net weight:27kg

Product Advantage

Product Features

* Vertical design, small footprint, easy to operate;

* Large liquid tank opening, easy to carry out experiments in the tank;

* Fully enclosed air-cooled compressor refrigeration, with delay, overheating, over-current protection;

* Can choose different low temperature set value, automatic precision constant temperature;

* Dynamic temperature control system, small temperature fluctuation, uniform temperature in the tank;

* Temperature display value and set value, double window dual-color display, clear and intuitive;

* With software lock function, irrelevant personnel can not modify the control parameters;

* Standard stainless steel interface, can be equipped with a variety of sizes of connectors and hoses, external closed loop;

* Ultra quiet circulation pump, cooling other equipment that need low temperature;

* Stainless steel low temperature tank of various sizes, to meet a variety of low temperature applications;

* Front plate can be opened, easy to clean radiator;

Applications

* Precise temperature control, the application of supporting calorimeter, refractometer, density detector;

* Use with viscosity measurement, very convenient;

* Provide a constant temperature source for quality control, for food, beverage and electronic research applications;

* In the field of biotechnology, it is applied to the constant temperature cooling of electrophoresis tank;

* Precision constant temperature for small rotary evaporators;

* Applied to medical and psychological rehabilitation.
