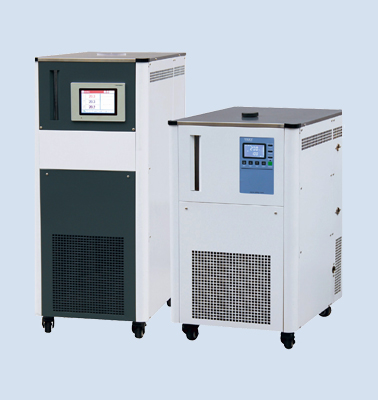

Cooling Heating Circulator CH-4030T

Temperature range:-40~180℃

Cooling capacity:0.3~2.2kW

Circulating flowrate:20L/min

Temperature stability:±0.5

Strength guarantee: 20 years of manufacturing experience,

24-hour after-sales service

Online Consultation

Technical Parameters

Temperature range:-40~180°C

Temperature range:±0.5°C

Circulating flowrate:20L/min

Circulating pressure:1.2bar

Filling volume:13L

Cooling capacity:0.3~2.2kW

Heat capacity:3.5kW

Power requirement:220V 50Hz 4.3kW

Overall dimension:W440×D520×H860 mm

Product Advantage

Product Features

* Rapid cooling and heating, can continuously raise temperature.

* Wide temperature control range, the whole process does not need to replace the thermal conductivity medium, thermal conductivity medium consumption is less.

* Closed circulation of thermal conductivity medium, ensuring the safety and life of thermal conductivity medium.

* High temperature precooling and refrigeration, can be directly cooled from high temperature.

* Refrigeration heat exchanger adopts brazed plate heat exchanger, small space, high heat exchange efficiency.

* High temperature, emergency stop, leakage, over current, overheating and other multiple protection, fully ensure the use of safety.

* High head design, to meet the long-distance transmission of thermal medium.

* Liquid level direct display function, monitoring liquid level at any time, to avoid liquid shortage operation.

* Optional alarm interface optional RS485 communication, easy to connect.
