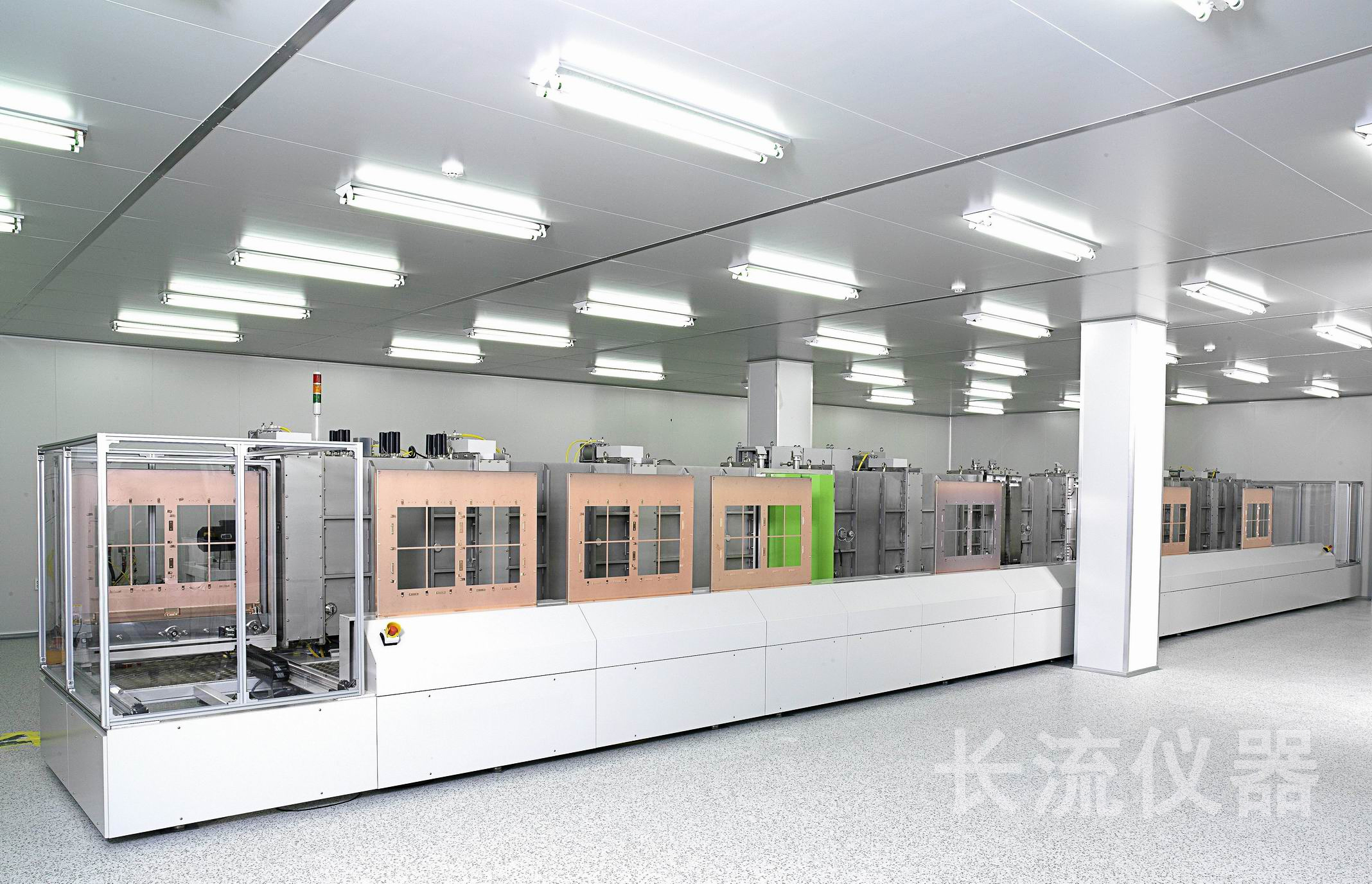

Vaporcold PolyCold is equipped with multi-layer magnetron sputtering multi-layer magnetron sputtering coating, which is a vertical continuous coating equipment designed for coating on the surface of flat substrates such as glass or plastic plates and sheets.

It is suitable for coating on the surface of glass or plastic plates and sheets. The equipment is suitable for plating ITO, Ag, Cr, Ti, a-c, DLC and other simple films or SiO2, Nb2O5, TiO2, tin, CrN, wo, NiO and other dielectric films. It can be used for plating ito/ar+ito transparent film, AR antireflection film, AZO film of thin film solar cell, electrochromic film and other coatings. Coating products are widely used in touch screen, flat panel display, vehicle glass, plastic plate, optical glass, thin-film solar cells, electrochromic smart windows and other fields.

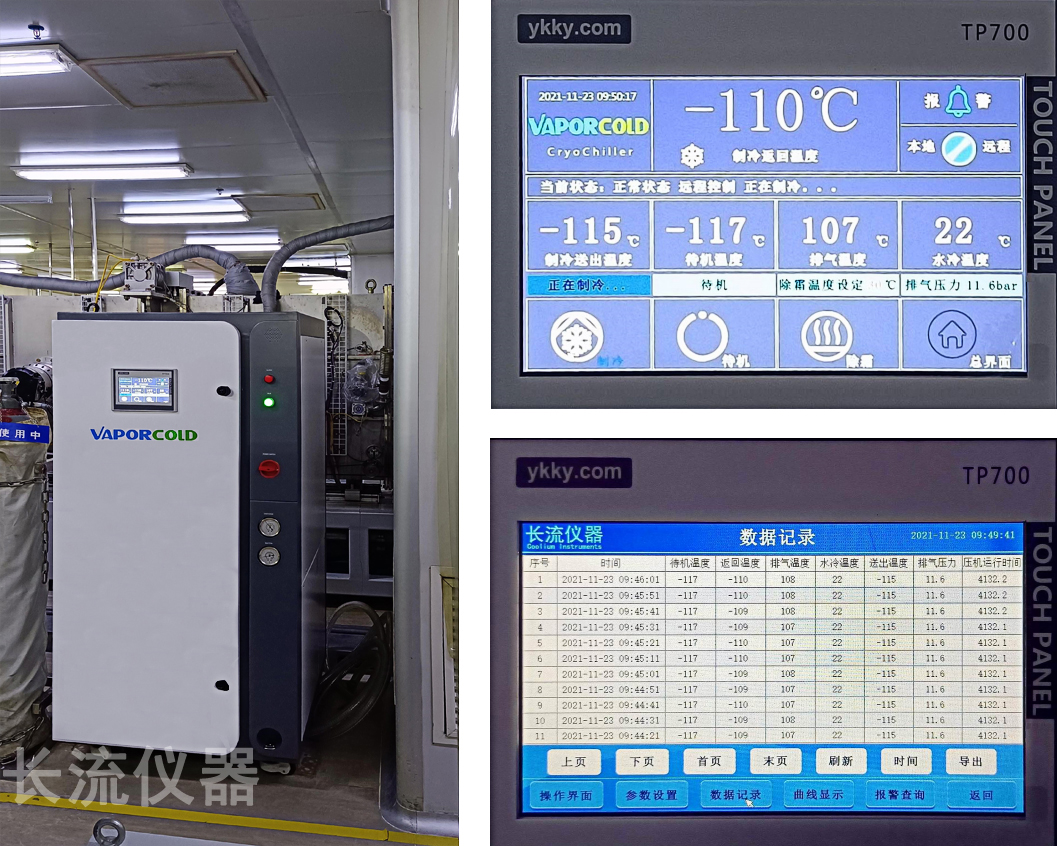

In the high vacuum system, water and gas molecules are the most typical pollutant gas with side effects. The vaporcold system can condense water and gas molecules on the ultra-low temperature surface, quickly capture and pump water and gas molecules from the vacuum system, shorten the vacuum pumping time by 20% ~ 75%, shorten the working cycle, and improve the output and quality.Vaporcold deep cooling water steam trap pump is specially designed for vacuum coating system and provides a complete deep cooling water steam trap scheme. It has accompanied customers at home and abroad for 15 years. After four upgrade iterations, the main performance of the product has reached or exceeded that of similar imported products, with high cost performance. The main features are as follows:

1. the minimum temperature can reach -100 ℃ to -150 ℃.

2. the maximum heat absorption capacity is 3500 watts.

3. the maximum water vapor capture speed is 250000 l/s, and the vacuum can reach 1.5*10e-9pa.

4. quickly capture water vapor, oil and gas, and shorten the extraction time by 20%-75% in the high vacuum system.

5. increase the production capacity of the existing vacuum system by 20% ~100%.

6. improve coating quality and reduce production cost.

7. improve the adhesion and multi-layer coating ability of the film.

8. international brand refrigeration compressor, green and environment-friendly fluorine-free refrigerant.

9. multi group safety protection, monitoring and recording temperature, pressure, phase sequence, overload and other parameters.

10. perfect automatic control, local and remote optional, with RS485 communication.

Long flow instrument has professional and leading cryogenic technology, and its products are widely used in the market, such as semiconductor process, solar thin film, optical fiber, flat panel display, optical coating, winding coating and decorative coating. For more than ten years, vaporcold water vapor trap pump has completely replaced imported similar equipment, helping customers reduce production costs, improve process performance, improve workplace safety and increase production reliability. Shooting film production line.
